| TEST LOAD OF STUDLESS CHAINS & FITTINGS |
|
| |
Anchor Chain

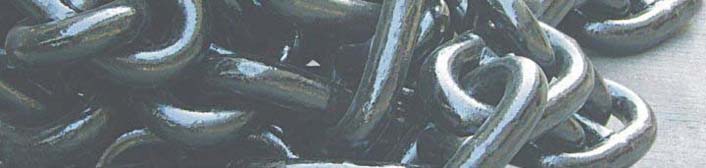

Studless Marine Chain
Size : dia. 12.5 to dia. 162
Class : AM1 to AM3
|
 |
|
| MS UNIT |
Chain
Dia
|
Grade 2
|
Grade 3
|
Approx
Mass
(27.5m) |
Chain
Dia
|
Grade 2
|
Grade 3
|
Approx
Mass
(27.5m) |
|
Proof
Load
|
Breaking
Load
|
Proof
Load
|
Breaking
Load
|
Proof
Load
|
Breaking
Load
|
Proof
Load
|
Breaking
Load
|
|
mm
|
KN
|
KN
|
KN
|
KN
|
kg
|
mm
|
KN
|
KN
|
KN
|
KN
|
kg
|
|
12.5
|
28.75
|
57.81
|
41.20
|
82.60
|
93.5
|
32
|
188.42
|
378.88
|
365.60
|
531.20
|
664.6
|
|
14
|
34.78
|
69.93
|
51.00
|
101.90
|
117.15
|
34
|
212.70
|
427.72
|
299.90
|
599.80
|
752.9
|
|
16
|
47.10
|
94.72
|
66.20
|
132.30
|
152.9
|
36
|
238.46
|
479.52
|
336.10
|
672.30
|
861.2
|
|
17.5
|
56.35
|
113.31
|
78.89
|
157.78
|
182.8
|
38
|
265.70
|
534.28
|
374.40
|
748.70
|
957.5
|
|
19
|
66.42
|
133.57
|
93.60
|
187.20
|
249.5
|
40
|
294.40
|
592.00
|
414.50
|
829.10
|
1056.2
|
|
20.5
|
77.33
|
155.49
|
108.64
|
217.27
|
275.4
|
42
|
324.58
|
652.68
|
457.70
|
915.30
|
1166.5
|
|
22
|
89.06
|
179.08
|
125.40
|
250.90
|
328.6
|
44
|
356.22
|
716.32
|
502.70
|
999.60
|
1270.4
|
|
24
|
105.98
|
213.25
|
149.90
|
298.90
|
385.0
|
46
|
389.34
|
782.92
|
548.80
|
1097.60
|
1396.6
|
|
26
|
124.38
|
250.12
|
175.40
|
350.80
|
449.1
|
48
|
423.94
|
852.48
|
597.80
|
1195.60
|
1520.6
|
|
28
|
144.26
|
290.18
|
203.80
|
406.70
|
516.7
|
50
|
460.00
|
926.09
|
648.80
|
1239.60
|
1650.0
|
|
30
|
165.60
|
333.00
|
234.2
|
467.50
|
589.4
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
