SINGLE LEG STEEL WIRE ROPE SLING
|
|
|
 |

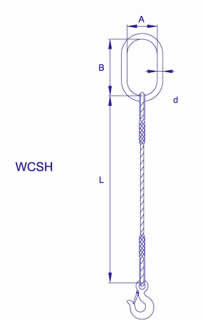

- Single Leg Spliced Wire Rope Sling
|
|
- This form with the working load use the steel wire rope：6x37+FC-1670；
- Different construction of the rope means different working load, we can calculate the working load with the steel wire rope construction that the customer required；
- The sling’s breaking load is 5 times than its working load；
- According to the GB/T16271-1996 Standard。
|
|
|
Art.Type |
Steel wire rope Diameter(mm) |
Working Load Limited(KN) |
Master Link A×B×d(mm) |
Hook |
WLL(t) |
WCSH06 |
6 |
2.7 |
65×130×16 |
0.75 |
WCSH07 |
7 |
3.6 |
65×130×16 |
0.75 |
WCSH08 |
8 |
4.7 |
65×130×16 |
0.75 |
WCSH09 |
9 |
6 |
65×130×16 |
0.75 |
WCSH10 |
10 |
7.4 |
65×130×16 |
0.75 |
WCSH11 |
11 |
8.9 |
65×130×16 |
1 |
WCSH12 |
12 |
11 |
65×130×16 |
1.5 |
WCSH13 |
13 |
12 |
65×130×16 |
1.5 |
WCSH14 |
14 |
14 |
65×130×16 |
1.5 |
WCSH16 |
16 |
19 |
65×130×16 |
2 |
WCSH18 |
18 |
24 |
80×150×20 |
3 |
WCSH20 |
20 |
30 |
80×150×20 |
3 |
WCSH22 |
22 |
36 |
90×160×24 |
5 |
WCSH24 |
24 |
42 |
90×160×24 |
5 |
WCSH26 |
26 |
50 |
90×160×24 |
5 |
WCSH28 |
28 |
58 |
100×190×28 |
7.5 |
WCSH30 |
30 |
66 |
100×190×28 |
7.5 |
WCSH32 |
32 |
76 |
100×190×28 |
10 |
WCSH34 |
34 |
85 |
110×200×32 |
10 |
WCSH36 |
36 |
96 |
110×200×32 |
10 |
WCSH38 |
38 |
106 |
120×230×34 |
15 |
WCSH40 |
40 |
118 |
120×230×34 |
15 |
WCSH42 |
42 |
130 |
135×250×38 |
15 |
WCSH44 |
44 |
143 |
135×250×38 |
15 |
WCSH46 |
46 |
156 |
140×270×42 |
37 |
WCSH48 |
48 |
170 |
140×270×42 |
37 |
WCSH50 |
50 |
185 |
140×270×42 |
37 |
WCSH52 |
52 |
200 |
140×270×42 |
37 |
WCSH54 |
54 |
215 |
140×270×42 |
37 |
WCSH56 |
56 |
231 |
160×310×46 |
37 |
WCSH58 |
58 |
248 |
160×310×46 |
37 |
WCSH60 |
60 |
266 |
180×330×52 |
37 |
Remark: the fittings for the sling can use the same tons shackles and clamps except the hooks. |
|
- SINGLE LEG PRESSED STEEL WIRE ROPE SLING
|
|
- The specification of the steel wire in the form with the working load is :6X37+FC-1670;
- Different construction rope with different working load,we can calculate the working load of the steel wire rope construction that the customer required;
|
 |
|
Art.NO |
Dia of rope
d(mm) |
Working Load Limit(KN) |
Master Link
A×B×d(mm) |
Hook |
WLL(T) |
WSSH06 |
6 |
3.2 |
65×130×16 |
0.75 |
WSSH07 |
7 |
4.3 |
65×130×16 |
0.75 |
WSSH08 |
8 |
5.7 |
65×130×16 |
0.75 |
WSSH09 |
9 |
7.2 |
65×130×16 |
0.75 |
WSSH10 |
10 |
8.9 |
65×130×16 |
1 |
WSSH11 |
11 |
11 |
65×130×16 |
1.5 |
WSSH12 |
12 |
13 |
65×130×16 |
1.5 |
WSSH13 |
13 |
15 |
65×130×16 |
1.5 |
WSSH14 |
14 |
17 |
65×130×16 |
2 |
WSSH16 |
16 |
23 |
80×150×20 |
3 |
WSSH18 |
18 |
29 |
80×150×20 |
3 |
WSSH20 |
20 |
35 |
90×160×24 |
5 |
WSSH22 |
22 |
43 |
90×160×24 |
5 |
WSSH24 |
24 |
51 |
90×160×24 |
7.5 |
WSSH26 |
26 |
60 |
100×190×28 |
7.5 |
WSSH28 |
28 |
69 |
100×190×28 |
7.5 |
WSSH30 |
30 |
80 |
100×190×28 |
10 |
WSSH32 |
32 |
91 |
110×200×32 |
10 |
WSSH34 |
34 |
102 |
110×200×32 |
15 |
WSSH36 |
36 |
115 |
120×230×34 |
15 |
WSSH38 |
38 |
128 |
135×250×38 |
15 |
WSSH40 |
40 |
142 |
135×250×38 |
15 |
WSSH42 |
42 |
157 |
140×270×42 |
37 |
WSSH44 |
44 |
172 |
140×270×42 |
37 |
WSSH46 |
46 |
187 |
140×270×42 |
37 |
WSSH48 |
48 |
203 |
140×270×42 |
37 |
WSSH50 |
50 |
221 |
160×310×46 |
37 |
WSSH52 |
52 |
239 |
160×310×46 |
37 |
WSSH54 |
54 |
258 |
180×330×52 |
37 |
WSSH56 |
56 |
277 |
180×330×52 |
37 |
WSSH58 |
58 |
298 |
180×330×52 |
37 |
WSSH60 |
60 |
319 |
180×330×56 |
37 |
| Remark: the fittings for the sling can use the same tons shackles and clamps except the hooks. |
|
| |
| |
