FOUR LEGS STEEL WIRE ROPE SLING
|
|
|
 |

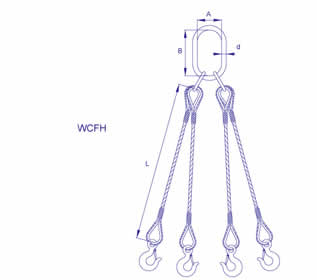

- Four Legs Spliced Wire Rope Sling
|
|
- This form with the working load use the steel wire rope：6x37+FC-1670；
- This form with two status working load, the 0-90 can be used if the customers has not any special requirement；
- Different construction of the rope means different working load, we can calculate the working load with the steel wire rope construction that the customer required；
- ACCORDING TO THE GB/T16271-1996 STANDARD.
|
|
|
Art.Type |
Steel Wire rope Diameter(mm) |
Working Load Limited(KN) |
Master Link
A×B×d(mm) |
Hook |
0℃-45℃ |
45℃-60℃ |
WLL(T) |
WCFH06 |
6 |
5.6 |
4.0 |
65×130×16 |
0.75 |
WCFH07 |
7 |
7.6 |
5.4 |
65×130×16 |
0.75 |
WCFH08 |
8 |
9.9 |
7.1 |
65×130×16 |
0.75 |
WCFH09 |
9 |
12.6 |
9 |
65×130×16 |
0.75 |
WCFH10 |
10 |
15 |
11 |
65×130×16 |
0.75 |
WCFH11 |
11 |
19 |
13 |
65×130×16 |
1 |
WCFH12 |
12 |
22 |
16 |
80×150×20 |
1.5 |
WCFH13 |
13 |
26 |
19 |
80×150×20 |
1.5 |
WCFH14 |
14 |
30 |
22 |
80×150×20 |
1.5 |
WCFH16 |
16 |
40 |
28 |
90×160×24 |
2 |
WCFH18 |
18 |
50 |
36 |
90×160×24 |
3 |
WCFH20 |
20 |
62 |
44 |
100×190×28 |
3 |
WCFH22 |
22 |
75 |
54 |
100×190×28 |
5 |
WCFH24 |
24 |
89 |
64 |
110×200×32 |
5 |
WCFH26 |
26 |
105 |
75 |
110×200×32 |
5 |
WCFH28 |
28 |
122 |
87 |
120×230×34 |
7.5 |
WCFH30 |
30 |
138 |
99 |
135×250×38 |
7.5 |
WCFH32 |
32 |
159 |
113 |
135×250×38 |
10 |
WCFH34 |
34 |
178 |
127 |
140×270×42 |
10 |
WCFH36 |
36 |
201 |
144 |
140×270×42 |
10 |
WCFH38 |
38 |
224 |
159 |
160×310×46 |
15 |
WCFH40 |
40 |
248 |
177 |
160×310×46 |
15 |
WCFH42 |
42 |
273 |
195 |
180×330×52 |
15 |
WCFH44 |
44 |
300 |
214 |
180×330×52 |
37 |
WCFH46 |
46 |
327 |
234 |
180×330×56 |
37 |
WCFH48 |
48 |
356 |
254 |
180×330×56 |
37 |
WCFH50 |
50 |
388 |
277 |
180×330×56 |
37 |
WCFH52 |
52 |
419 |
299 |
210×410×62 |
37 |
WCFH54 |
54 |
451 |
322 |
210×410×62 |
37 |
WCFH56 |
56 |
485 |
347 |
210×410×62 |
37 |
WCFH58 |
58 |
521 |
372 |
210×410×68 |
37 |
WCFH60 |
60 |
558 |
398 |
210×410×68 |
37 |
Remark: the fittings for the sling can use the same tons shackles and clamps except the hooks. |
|
- FOUR LEGS PRESSED STEEL WIRE ROPE SLING
|
|
- This form with the working load use the steel wire rope:6X37+fc-1670;
- This form with status working load,the 0-45 can be used if the customers has not any special requirement
- Different construction rope with different working load,we can calculate the working load of the steel wire rope construction that the customer required.
|
 |
|
Art.NO |
Dia of rope
d(mm) |
Working Load Limit(KN) |
Measter Link
A×B×d(mm) |
HOOK |
0℃-45℃ |
45℃-60℃ |
WLL(T) |
WSFH06 |
6 |
6.7 |
4.8 |
65×130×16 |
0.75 |
WSFH07 |
7 |
9.1 |
6.5 |
65×130×16 |
0.75 |
WSFH08 |
8 |
12 |
8.5 |
65×130×16 |
0.75 |
WSFH09 |
9 |
15 |
11 |
65×130×16 |
0.75 |
WSFH10 |
10 |
19 |
13 |
65×130×16 |
1 |
WSFH11 |
11 |
23 |
16 |
80×150×20 |
1.5 |
WSFH12 |
12 |
27 |
19 |
80×150×20 |
1.5 |
WSFH13 |
13 |
31 |
22 |
80×150×20 |
1.5 |
WSFH14 |
14 |
36 |
26 |
90×160×24 |
2 |
WSFH16 |
16 |
48 |
34 |
90×160×24 |
3 |
WSFH18 |
18 |
60 |
43 |
100×190×28 |
3 |
WSFH20 |
20 |
74 |
53 |
100×190×28 |
5 |
WSFH22 |
22 |
90 |
64 |
110×200×32 |
5 |
WSFH24 |
24 |
107 |
76 |
120×230×34 |
7.5 |
WSFH26 |
26 |
126 |
90 |
135×250×38 |
7.5 |
WSFH28 |
28 |
146 |
104 |
135×250×38 |
7.5 |
WSFH30 |
30 |
168 |
120 |
140×270×42 |
10 |
WSFH32 |
32 |
191 |
136 |
140×270×42 |
10 |
WSFH34 |
34 |
214 |
153 |
160×310×46 |
15 |
WSFH36 |
36 |
241 |
172 |
160×310×46 |
15 |
WSFH38 |
38 |
269 |
192 |
180×330×52 |
15 |
WSFH40 |
40 |
298 |
213 |
180×330×52 |
15 |
WSFH42 |
42 |
330 |
235 |
180×330×56 |
37 |
WSFH44 |
44 |
360 |
257 |
180×330×56 |
37 |
WSFH46 |
46 |
393 |
280 |
180×330×56 |
37 |
WSFH48 |
48 |
427 |
305 |
210×410×62 |
37 |
WSFH50 |
50 |
464 |
331 |
210×410×62 |
37 |
WSFH52 |
52 |
503 |
359 |
210×410×62 |
37 |
WSFH54 |
54 |
542 |
387 |
210×410×68 |
37 |
WSFH56 |
56 |
582 |
416 |
210×410×68 |
37 |
WSFH58 |
58 |
626 |
447 |
240×410×76 |
37 |
WSFH60 |
60 |
669 |
478 |
240×410×76 |
37 |
Notice: the fittings for the sling can equipe shackles with the same weight of it and clamps besides hooks |
|
| |
| |
