DOUBLE LEG STEEL WIRE ROPE SLING
|
|
|
 |
- Double Leg Spliced Wire Rope Sling
|
|
- This form with the working load use the steel wire rope：6x37+FC-1670；
- This form with two status working load, the 0-90 can be used if the customers has not any special requirement；
- Different construction of the rope means different working load, we can calculate the working load with the steel wire rope construction that the customer required；
- ACCORDING TO THE GB/T16271-1996 STANDARD.
|
|
|
Art.Type |
Steel wire rope Diameter(mm) |
Working Load Limited(KN) |
Master link
A×B×d(mm) |
Hook |
0℃-90℃ |
90℃-120℃ |
WLL(T) |
WCDH06 |
6 |
3.7 |
2.7 |
65×130×16 |
0.75 |
WCDH07 |
7 |
5 |
3.6 |
65×130×16 |
0.75 |
WCDH08 |
8 |
6.6 |
4.7 |
65×130×16 |
0.75 |
WCDH09 |
9 |
8.4 |
6 |
65×130×16 |
0.75 |
WCDH10 |
10 |
10.4 |
7.4 |
65×130×16 |
0.75 |
WCDH11 |
11 |
13 |
9 |
65×130×16 |
1 |
WCDH12 |
12 |
15 |
11 |
65×130×16 |
1.5 |
WCDH13 |
13 |
17 |
12 |
65×130×16 |
1.5 |
WCDH14 |
14 |
20 |
14 |
65×130×16 |
1.5 |
WCDH16 |
16 |
26 |
19 |
80×150×20 |
2 |
WCDH18 |
18 |
33 |
24 |
90×160×24 |
3 |
WCDH20 |
20 |
41 |
30 |
90×160×24 |
3 |
WCDH22 |
22 |
50 |
36 |
90×160×24 |
5 |
WCDH24 |
24 |
59 |
42 |
100×190×28 |
5 |
WCDH26 |
26 |
70 |
50 |
100×190×28 |
5 |
WCDH28 |
28 |
81 |
58 |
100×190×28 |
7.5 |
WCDH30 |
30 |
92 |
66 |
110×200×32 |
10 |
WCDH32 |
32 |
106 |
76 |
110×200×32 |
10 |
WCDH34 |
34 |
119 |
85 |
135×250×38 |
10 |
WCDH36 |
36 |
134 |
96 |
135×250×38 |
10 |
WCDH38 |
38 |
148 |
106 |
135×250×38 |
15 |
WCDH40 |
40 |
165 |
118 |
135×250×38 |
15 |
WCDH42 |
42 |
182 |
130 |
140×270×42 |
15 |
WCDH44 |
44 |
200 |
143 |
140×270×42 |
15 |
WCDH46 |
46 |
218 |
156 |
160×310×46 |
15 |
WCDH48 |
48 |
237 |
170 |
160×310×46 |
37 |
WCDH50 |
50 |
259 |
185 |
180×330×52 |
37 |
WCDH52 |
52 |
279 |
200 |
180×330×52 |
37 |
WCDH54 |
54 |
301 |
215 |
180×330×52 |
37 |
WCDH56 |
56 |
323 |
231 |
180×330×56 |
37 |
WCDH58 |
58 |
347 |
248 |
180×330×52 |
37 |
WCDH60 |
60 |
372 |
266 |
180×330×56 |
37 |
| Remark: the fittings for the sling can use the same tons shackles and clamps except the hooks. |
|

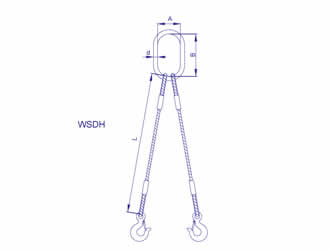

- DOUBLE LEG PRESSED STEEL WIRE ROPE SLING
|
|
- The specification of the steel wire in the form with the working load is:6X37+FC-1670;
- The 0-90 can be used if the customers do not have any special requirement;
- Different construction rope with different working load,we can calculate the working load of the steel wire rope construction that the customer required;
|
 |
|
Art.NO |
Dia of rope
d(mm) |
Working Load Limit(KN) |
Mater Link
A×B×d(mm) |
HOOK |
0℃-90℃ |
90℃-120℃ |
WLL(T) |
WSDH06 |
6 |
4.5 |
3.2 |
65×130×16 |
0.75 |
WSDH07 |
7 |
6.1 |
4.3 |
65×130×16 |
0.75 |
WSDH08 |
8 |
7.9 |
5.7 |
65×130×16 |
0.75 |
WSDH09 |
9 |
10 |
7.2 |
65×130×16 |
0.75 |
WSDH10 |
10 |
12 |
8.9 |
65×130×16 |
1 |
WSDH11 |
11 |
15 |
11 |
65×130×16 |
1.5 |
WSDH12 |
12 |
18 |
13 |
65×130×16 |
1.5 |
WSDH13 |
13 |
21 |
15 |
65×130×16 |
1.5 |
WSDH14 |
14 |
24 |
17 |
80×150×20 |
2 |
WSDH16 |
16 |
32 |
23 |
80×150×20 |
3 |
WSDH18 |
18 |
40 |
29 |
90×160×24 |
3 |
WSDH20 |
20 |
50 |
35 |
90×160×24 |
5 |
WSDH22 |
22 |
60 |
43 |
100×190×28 |
5 |
WSDH24 |
24 |
71 |
51 |
100×190×28 |
7.5 |
WSDH26 |
26 |
84 |
60 |
110×200×32 |
7.5 |
WSDH28 |
28 |
97 |
69 |
110×200×32 |
7.5 |
WSDH30 |
30 |
112 |
80 |
135×250×38 |
10 |
WSDH32 |
32 |
127 |
91 |
135×250×38 |
10 |
WSDH34 |
34 |
143 |
102 |
135×250×38 |
15 |
WSDH36 |
36 |
161 |
115 |
135×250×38 |
15 |
WSDH38 |
38 |
179 |
128 |
140×270×42 |
15 |
WSDH40 |
40 |
199 |
142 |
140×270×42 |
15 |
WSDH42 |
42 |
220 |
157 |
160×310×46 |
37 |
WSDH44 |
44 |
240 |
172 |
160×310×46 |
37 |
WSDH46 |
46 |
262 |
187 |
180×330×52 |
37 |
WSDH48 |
48 |
285 |
203 |
180×330×52 |
37 |
WSDH50 |
50 |
309 |
221 |
180×330×56 |
37 |
WSDH52 |
52 |
335 |
239 |
180×330×56 |
37 |
WSDH54 |
54 |
361 |
258 |
180×330×56 |
37 |
WSDH56 |
56 |
388 |
277 |
180×330×56 |
37 |
WSDH58 |
58 |
417 |
298 |
210×410×62 |
37 |
WSDH60 |
60 |
446 |
319 |
210×410×62 |
37 |
Remark: the fittings for the sling can use the same tons shackles and clamps except the hooks.
|
|
| |
| |
