Steel Wire Rope Sling

Your current position: Home > Products >Slings>Steel Wire Rope Slings

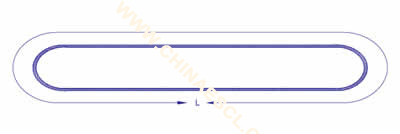

Endless Steel Wire Rope Sling

ENDLESS WIRE ROPE SLING

The seed rope for the endless wire rope sling is different, then the breaking load for the sling is different. We can calculate the sling’s breaking load with the steel wire rope construction that required by the customer。

Art.Type	Min.Breaking Load(KN)	Single leg working rope(KN)	Double leg working rope(KN)		Four leg working rope(KN)		APPROXIBLE WEIGHT(KG/M)
Art.Type	Min.Breaking Load(KN)	a=0°	a=45°	a=90°	a=45°	a=90°	APPROXIBLE WEIGHT(KG/M)
WJT10	60	10	18	14	37	28	0.21
WJT12	100	16	30	20	58	40	0.35
WJT16	180	30	56	40	112	80	0.59
WJT19	240	40	74	56	148	112	0.84
WJT23	380	63	117	88	234	176	1.51
WJT29	480	80	148	113	296	226	2.36
WJT34	600	100	185	141	370	282	2.86
WJT40	900	150	278	212	556	424	3.99
WJT46	1200	200	370	282	740	564	6.02
WJT54	1500	250	463	353	926	706	7.63
WJT60	2000	320	592	451	1184	902	9.45
WJT67	2400	400	740	564	1480	1128	11.41
WJT75	3000	500	925	705	1850	1410	13.58
WJT80	3600	600	1110	850	2220	1700	15.96
WJT87	4200	700	1300	990	2600	1980	18.48
WJT95	4800	800	1480	1130	2960	2260	24.15
WJT100	5880	980	1810	1380	3620	2760	27.3
WJT110	6900	1150	2130	1620	4260	3240	30.59
WJT118	7800	1300	2410	1830	4820	3660	41.58
WJT135	10200	1700	3100	2400	6100	4700	46.9
WJT148	12000	2000	3700	2800	7200	5600	55.79
WJT160	14400	2400	4400	3400	8600	6700	65.52
WJT172	16800	2800	5200	4000	10000	7800	76.3
WJT184	18000	3000	5500	4200	10800	8400	89.6
WJT196	20400	3400	6300	4800	12200	9500	102.2
WJT208	22800	3800	7000	5370	13600	10600	115.5
WJT220	25200	4200	7700	5940	15000	11700	129.5
WJT234	28200	4700	8700	6600	16900	13100	144.2
WJT246	31200	5200	9600	7350	18700	14500	159.6
WJT258	34200	5700	10500	8000	20500	16000	175.7
WJT276	39600	6600	12200	9300	23700	18400	201.6
WJT295	45000	7500	13800	10600	27000	21000	229.6
WJT306	49200	8200	15200	11600	29500	22900	249.2
WJT324	55200	9200	17000	13000	33100	25700	280.0
WJT336	59400	9900	18000	14000	36500	27700	301.7
WJT356	66000	11000	20300	15500	39600	30800	335.3
WJT368	72000	12000	22200	17000	43200	33600	359.1
WJT372	70685	11780	21205	16490	43585	32985	422
WJT378	73030	12170	21905	17040	45035	34080	435
WJT384	75375	12560	22610	17585	46480	35175	449
WJT390	77720	12950	23315	18135	47925	36270	463
WJT396	80170	13360	24050	18705	49435	37410	478
WJT402	82620	13770	24785	19275	50945	38555	492
WJT408	85065	14175	25520	19845	52455	39695	507
WJT414	87615	14600	26285	20440	54030	40885	523
WJT420	90165	15025	27050	21035	55600	42075	538
WJT426	92715	15450	27815	21630	57175	43265	553
WJT432	95370	15895	28610	22250	58810	44505	569
WJT438	98020	16335	29405	22870	60445	45740	585
WJT444	100775	16795	30230	23510	62145	47025	601
WJT450	103020	17170	30905	24035	63525	48075	618
WJT456	106080	17680	31820	24750	65415	49500	635
WJT462	109140	18190	32740	25465	67300	50930	650
WJT468	112200	18700	33660	26180	69190	52360	667
WJT474	115260	19210	34575	26890	71075	53785	685
WJT480	117300	19550	35190	27370	72335	54740	702
WJT486	120360	20060	36105	28085	74220	56165	720
WJT492	123420	20570	37025	28798	76105	57595	738
WJT498	126480	21080	37940	29510	77995	59020	756
WJT504	129540	21590	38860	30225	79880	60450	771
WJT510	132600	22100	39780	30940	81770	61880	793
WJT516	135660	22610	40695	31650	83655	63305	808
WJT522	139740	23290	41920	32605	86170	65210	831
WJT528	142800	23800	42840	33320	88060	66640	853
WJT534	145860	24310	43755	34030	89945	68065	868
WJT540	148920	24820	44675	34745	91830	69495	890
WJT546	151980	25330	45590	35460	93720	70920	912
WJT552	156060	26010	46815	36410	96235	72825	927
WJT558	159120	26520	47735	37125	98120	74255	949
WJT564	162180	27030	48650	37840	100010	75680	972
WJT570	166260	27710	49875	38790	102525	77585	994

HIGH TENSION ENDLESS WIRE ROPE SLING

The seed rope for the high tension endless wire rope sling is different, then the breaking load for the sling is different. We can calculate the sling’s breaking load with the steel wire rope construction that required by the customer。

Art.Type	Dia of the rope(mm)	Min.breaking load(KN)	Single leg working rope(KN)	Double leg working rope(KN)		APPROXIBLE WEIGHT(KG/M)
Art.Type	Dia of the rope(mm)	Min.breaking load(KN)	Single leg working rope(KN)	a=45°	a=90°	APPROXIBLE WEIGHT(KG/M)
GJT66	66	3111	622	1120	871	14.94
GJT72	72	3702	740	1333	1037	17.78
GJT78	78	4345	869	1564	1217	20.87
GJT84	84	5039	1008	1814	1411	24.20
GJT96	96	6581	1316	2369	1843	31.61
GJT108	108	8330	1666	2999	2332	40.01
GJT120	120	10284	2057	3702	2880	49.39
GJT132	132	12443	2489	4479	3484	59.76
GJT144	144	14808	2962	5331	4146	71.12
GJT156	156	17379	3476	6256	4866	83.47
GJT168	168	20156	4031	7256	5644	96.81
GJT180	180	23138	4628	8330	6479	111.13
GJT192	192	26326	5265	9477	7371	126.44
GJT198	198	27997	5599	10079	7839	134.47
GJT204	204	29719	5944	10699	8321	142.74
GJT210	210	31493	6299	11337	8818	151.26
GJT216	216	32383	6477	11658	9067	158.88
GJT222	222	34207	6841	12315	9578	167.83
GJT228	228	36081	7216	12989	10103	177.02
GJT234	234	38005	7601	13682	10641	186.46
GJT240	240	39979	7996	14392	11194	196.15
GJT246	246	42020	8400	15125	11765	216
GJT252	252	44060	8810	15860	12335	228
GJT258	258	46205	9240	16630	12935	238
GJT264	264	48345	9665	17405	13535	251
GJT270	270	50590	10115	18210	14165	261
GJT276	276	52835	10565	19020	14790	273
GJT282	282	55180	11035	19865	15450	285
GJT288	288	57525	11505	20710	16105	298
GJT294	294	59975	11995	21590	16790	310
GJT300	300	62420	12480	22470	17475	322
GJT306	306	64970	12990	23390	18190	336
GJT312	312	67520	13500	24305	18905	348
GJT318	318	70175	14035	25260	19645	362
GJT324	324	72825	14565	26215	20390	376
GJT330	330	75580	15115	27205	21160	390
GJT336	336	78335	15665	28200	21930	405
GJT342	342	81190	16235	29225	22730	419
GJT348	348	84045	16805	30255	23530	435
GJT354	354	87005	17400	31320	24360	449
GJT360	360	89960	17990	32385	25185	464
GJT366	366	93020	18600	33485	26045	480
GJT372	372	96080	19215	34590	26900	496
GJT378	378	99140	19825	35690	27760	512
GJT384	384	102000	20400	36720	28560	529
GJT390	390	105060	21010	37820	29415	545
GJT396	396	109140	21825	39290	30555	562
GJT402	402	112200	22440	40390	31415	579
GJT408	408	115260	23050	41490	32270	597
GJT414	414	119340	23865	42960	33415	614
GJT420	420	122400	24480	44060	34270	632
GJT426	426	125460	25090	45165	35125	650
GJT432	432	129540	25905	46630	36270	669
GJT438	438	133620	26720	48100	37410	687
GJT444	444	136680	27335	49200	38270	707
GJT450	450	140760	28150	50670	39410	726
GJT456	456	143820	28760	51775	40265	749
GJT462	462	147900	29580	53240	41410	764
GJT468	468	151980	30395	54710	42550	786
