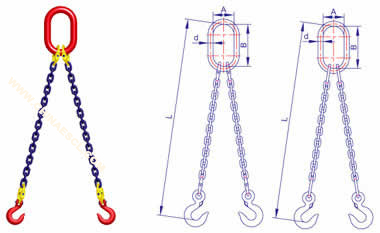

TWO LEG CHAIN SLING(GRADE S6)
|
|
|
 |
- Standard:GB20652。
- It can be used as one leg choker chain sling when the hook is inside the Link,but the working load will be reduced 20%。
- Safety factor:4:1。
- Surfacetreatment:
polished,blacked,galvanized,painted
|
|
|
ART.NO |
Diameter Of Chain(mm) |
Workig Load Limit(t) |
Master Link |
Weight/M
(kg) |
Chain Weight
(kg/m) |
α≤45° |
45°＜α≤60° |
AxBxd(mm) |
LSJ(H)2-6 |
6 |
1.4 |
1 |
65x130x16 |
3.61 |
0.79 |
LSJ(H)2-8 |
8 |
2.1 |
1.5 |
80x150x20 |
6.1 |
1.38 |
LSJ(H)2-10 |
10 |
3.5 |
2.5 |
90x160x24 |
11.51 |
2.2 |
LSJ(H)2-12 |
12 |
4.9 |
3.5 |
90x160x24 |
16.45 |
3.1 |
LSJ(H)2-14 |
14 |
7 |
5 |
100x190x28 |
19.39 |
4.13 |
LSJ(H)2-16 |
16 |
8.4 |
6 |
110x200x32 |
27.2 |
5.63 |
LSJ(H)2-18 |
18 |
11.2 |
8 |
120x230x34 |
30.21 |
6.85 |
LSJ(H)2-20 |
20 |
14 |
10 |
135x250x38 |
37.03 |
8.6 |
LSJ(H)2-22 |
22 |
16.8 |
12 |
140x270x42 |
71.23 |
10.2 |
LSJ(H)2-24 |
24 |
19.6 |
14 |
140x270x42 |
75.3 |
12.78 |
LSJ(H)2-26 |
26 |
23.8 |
17 |
160x310x46 |
124.37 |
14.87 |
LSJ(H)2-30 |
30 |
30.8 |
22 |
180x330x56 |
134.3 |
19.6 |
LSJ(H)2-34 |
34 |
40.6 |
29 |
210x410x68 |
155.45 |
22.7 |
|
