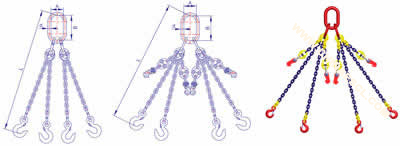

FOUR LEG CHAIN SLING ASSEMBLY(GRADE T8)
|
|
|
 |
- Standard:Q/JL018。
- Safety factor:4:1。
- Surface treatment:
polished,blacked,
galvanized,painted
|
|
|
ART.NO |
Diameter Of
Chain(mm) |
Workig Load Limit(t) |
Master Link |
Weight/M
(kg) |
Chain Weight
(kg/m) |
α≤45° |
45°＜α≤60° |
AxBxd(mm) |
LSJ4-6 |
6 |
2.35 |
1.68 |
75x135x18 |
5.79 |
0.79 |
LSJ4-8 |
8 |
4.2 |
3 |
90x160x22 |
9.66 |
1.38 |
LSJ4-10 |
10 |
6.61 |
4.72 |
100x190x28 |
18.47 |
2.2 |
LSJ4-13 |
13 |
11.13 |
7.95 |
110x200x32 |
26.34 |
3.8 |
LSJ4-16 |
16 |
16.38 |
11.7 |
140x260x35 |
32.04 |
5.63 |
LSJ4-20 |
20 |
23.52 |
16.8 |
190x350x50 |
41.66 |
8.6 |
LSJ4-22 |
22 |
31.5 |
22.5 |
190x350x50 |
119.3 |
10.2 |
LSJ4-26 |
26 |
44.5 |
31.8 |
200x400x60 |
196.99 |
14 |
LSJ4-32 |
32 |
66.15 |
47.25 |
250x460x70 |
411.6 |
22.29 |
|
