STAINLESS STEEL US TYPE TURNBUKLE |
|
|
 |
| |

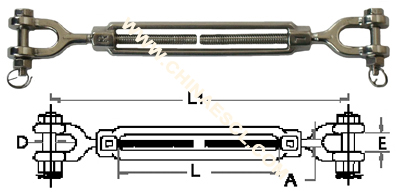

| STAINLESS STEEL US Type Turnbuckle Jaw&Jaw |
|
|
| |
| Size(A) |
L |
L1 |
D |
E |
WT |
WLL |
| |
|
|
|
|
(lbs) |
(lbs) |
| 1/4" |
4.00" |
7.75" |
0.25" |
0.44" |
0.45 |
500 |
| 5/16" |
4.50" |
9.00" |
0.25" |
0.50" |
0.65 |
800 |
| 3/8" |
6.00" |
10.63" |
0.31" |
0.56" |
0.90 |
1200 |
| 1/2" |
6.00" |
12.00" |
0.38" |
0.63" |
1.60 |
2200 |
| 5/8" |
6.00" |
13.50" |
0.50" |
0.75" |
3.05 |
3500 |
| 3/4" |
6.00" |
15.00" |
0.63" |
1.00" |
4.25 |
5200 |
| 1" |
6.00" |
18.00" |
0.88" |
1.25" |
10.59 |
8000 |
| 1" |
12.00" |
24.00" |
0.88" |
1.25" |
12.66 |
8000 |
| 1-1/4" |
12.00" |
26.63" |
1.13" |
1.88" |
22.32 |
12500 |
|
| |

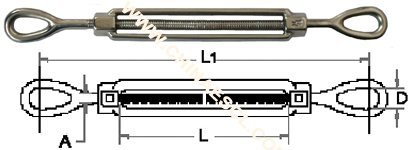

| STAINLESS STEEL US Type Turnbuckle Eye & Eye |
|
|
| |
| Size(A) |
L |
L1 |
D |
WT |
WLL |
| |
|
|
|
(lbs) |
(lbs) |
| 1/4" |
4.00" |
8.00" |
0.33" |
0.30 |
500 |
| 5/16" |
4.50" |
9.25" |
0.41" |
0.50 |
800 |
| 3/8" |
6.00" |
11.50" |
0.50" |
0.85 |
1200 |
| 1/2" |
6.00" |
13.00" |
0.75" |
1.30 |
2200 |
| 5/8" |
6.00" |
14.50" |
0.87" |
2.30 |
3500 |
| 3/4" |
6.00" |
16.25" |
1.00" |
3.50 |
5200 |
| 1" |
6.00" |
20.00" |
1.38" |
8.85 |
8000 |
| 1" |
12.00" |
25.50" |
1.38" |
10.91 |
8000 |
| 1-1/4" |
12.00" |
28.38" |
1.71" |
17.60 |
12500 |
|
| |

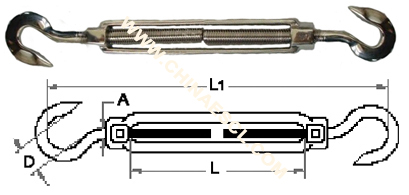

| STAINLESS STEEL US Type Turnbuckle Hook&Hook |
|
|
| |
| Size(A) |
L |
L1 |
D |
WT |
WLL |
| |
|
|
|
(lbs) |
(lbs) |
| 1/4" |
4.00" |
6.87" |
0.39" |
0.22 |
300 |
| 5/16" |
4.50" |
7.75" |
0.44" |
0.35 |
500 |
| 3/8" |
6.00" |
10.37" |
0.52" |
0.60 |
750 |
| 1/2" |
6.00" |
10.50" |
0.55" |
1.10 |
1050 |
| 5/8" |
6.00" |
14.25" |
0.57" |
1.90 |
1600 |
| 3/4" |
6.00" |
14.25" |
0.90" |
2.75 |
2000 |
|
| |

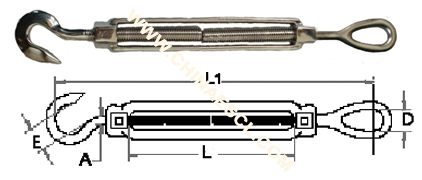

| STAINLESS STEEL US Type Turnbuckle Eye&Hook |
|
|
| |
| Size(A) |
L |
L1 |
D |
E |
WT |
WLL |
| |
|
|
|
|
(lbs) |
(lbs) |
| 1/4" |
4.00" |
7.50" |
0.33" |
0.39" |
0.25 |
300 |
| 5/16" |
4.50" |
8.50" |
0.41" |
0.44" |
0.45 |
500 |
| 3/8" |
6.00" |
10.75" |
0.51" |
0.52" |
0.67 |
750 |
| 1/2" |
6.00" |
12.00" |
0.75" |
0.55" |
1.00 |
1050 |
| 5/8" |
6.00" |
13.50" |
0.87" |
0.57" |
2.00 |
1600 |
| 3/4" |
6.00" |
15.50" |
1.00" |
0.90" |
3.00 |
2000 |
|
| |

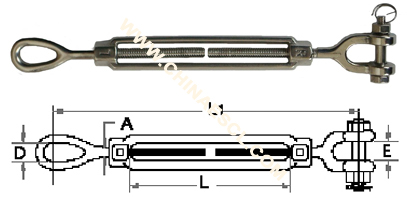

| STAINLESS STEEL US Type Turnbuckle Eye&Jaw |
|
|
| |
| Size(A) |
B |
C |
D |
E |
WT |
WLL |
| |
|
|
|
|
(lbs) |
(lbs) |
| 1/4" |
4.00" |
7.88" |
0.33" |
0.44" |
0.35 |
500 |
| 5/16" |
4.50" |
9.25" |
0.41" |
0.50" |
0.60 |
800 |
| 3/8" |
6.00" |
11.00" |
0.50" |
0.56" |
0.00 |
1200 |
| 1/2" |
6.00" |
12.50" |
0.75" |
0.63" |
1.00 |
2200 |
| 5/8" |
6.00" |
14.00" |
0.87" |
0.75" |
2.00 |
3500 |
| 3/4" |
6.00" |
15.63" |
1.00" |
1.00" |
4.00 |
5200 |
| 1" |
6.00" |
19.00" |
1.38" |
1.25" |
9.66 |
8000 |
| 1" |
12.00" |
25.00" |
1.38" |
1.25" |
1.00 |
8000 |
| 1-1/4" |
12.00" |
27.50" |
1.71" |
1.88" |
19.96 |
12500 |
|
| |
| |
