Turnbuckle  Your current position: Home > Products >Riggings>Turnbuckle

STAINLESS STEEL EUROPE TYPE TURNBUKLE

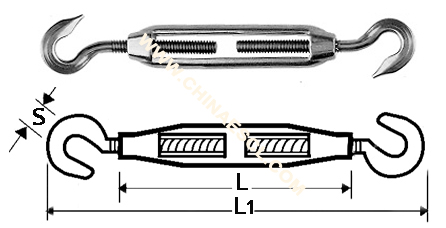

STAINLESS STEEL Europe Type Turnbuckle Hook&Hook

Size L L1 S Weight WLL
　 (mm) (mm) (mm) (kgs) (kg)
M5 70 120 8 0.05 40
M6 90 150 9 0.08 80
M8 120 200 11 0.17 140
M10 150 240 12 0.28 220
M12 200 310 14 0.52 300
M16 250 390 16 1.20 600
M20 300 440 18 2.15 900

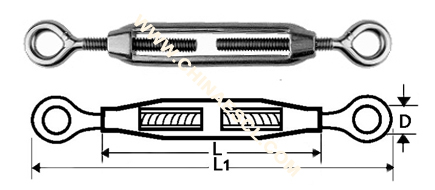

STAINLESS STEEL Europe Type Turnbuckle Eye&Eye

Size L L1 D Weight WLL
　 (mm) (mm) (mm) (kgs) (kg)
M5 70 120 8 0.05 40
M6 90 150 10 0.08 80
M8 120 200 14 0.17 140
M10 150 240 16 0.28 220
M12 200 310 18 0.52 300
M16 250 390 25 1.20 600
M20 300 440 30 2.15 900

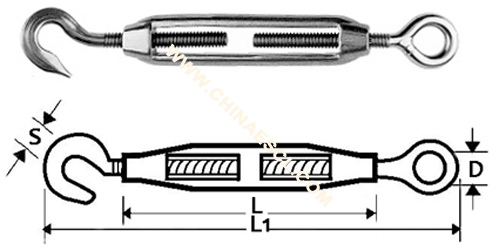

STAINLESS STEEL Europe Type Turnbuckle Hook&Eye

Size L L1 D S Weight WLL
　 (mm) (mm) (mm) (mm) (kgs) (kg)
M5 70 120 8 8 0.05 40
M6 90 150 10 9 0.08 80
M8 120 200 14 11 0.17 140
M10 150 240 16 12 0.28 220
M12 200 310 18 14 0.52 300
M16 250 390 25 16 1.20 600
M20 300 440 30 18 2.15 900

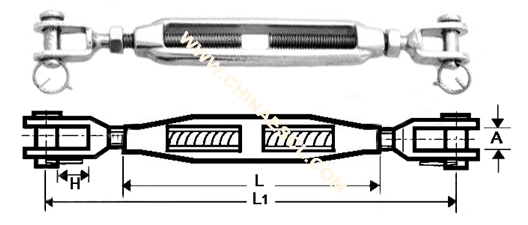

STAINLESS STEEL Europe Type Turnbuckle Jaw&Jaw

Size L L1 A H Weight WLL
　 (mm) (mm) (mm) (mm) (kgs) (kg)
M5 70 120 6.5 10 0.05 40
M6 90 140 7.5 10 0.08 80
M8 120 180 11 11 0.17 140
M10 150 220 12 14 0.28 220
M12 200 300 14 20 0.52 300
M16 250 375 17 26 1.20 600
M20 300 450 20 30 2.15 900
