Turnbuckle  Your current position: Home > Products >Riggings>Turnbuckle

STAINLESS STEEL DIN1480 Turnbuckle

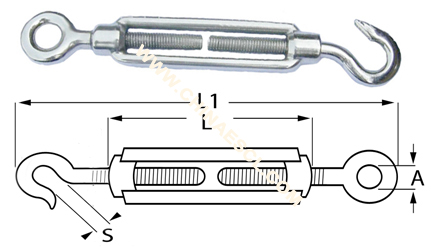

STAINLESS STEEL DIN1480 Turnbuckle Eye&Hook

Size(D) L L1 A S Weight WLL
　 (mm) (mm) (mm) (mm) (kgs) (kg)
M5 90 140 8 7 0.05 40
M6 110 170 10 9 0.08 80
M8 110 180 12 10 0.17 140
M10 125 210 14 11 0.28 220
M12 125 240 18 14 0.52 300
M16 170 320 22 18 1.20 600
M20 200 370 25 20 2.15 900

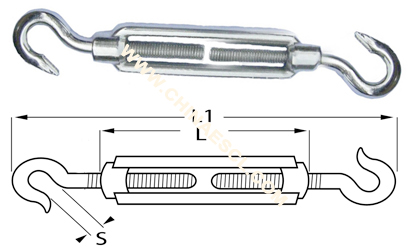

STAINLESS STEEL DIN1480 Turnbuckle Hook&Hook

Size L L1 S Weight WLL
　 (mm) (mm) (mm) (kgs) (kg)
M5 90 140 7 0.05 40
M6 110 170 9 0.08 80
M8 110 180 10 0.17 140
M10 125 210 11 0.28 220
M12 125 240 14 0.52 300
M16 170 320 18 1.20 600
M20 200 370 20 2.15 900

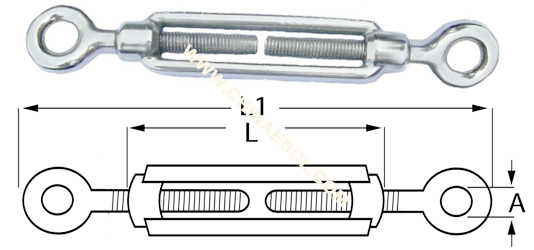

STAINLESS STEEL DIN1480 Turnbuckle Eye&Eye

Size(D) L L1 A Weight WLL
　 (mm) (mm) (mm) (kgs) (kg)
M5 90 140 8 0.05 40
M6 110 170 10 0.08 80
M8 110 180 12 0.17 140
M10 125 210 14 0.28 220
M12 125 240 18 0.52 300
M16 170 320 22 1.20 600
M20 200 370 25 2.15 900
